Fire Rated & Noise Control Walls
Full details on fire rated and noise control walls HIANDRI has been assessed for use with.
Tested with GIB® Fire rated walls

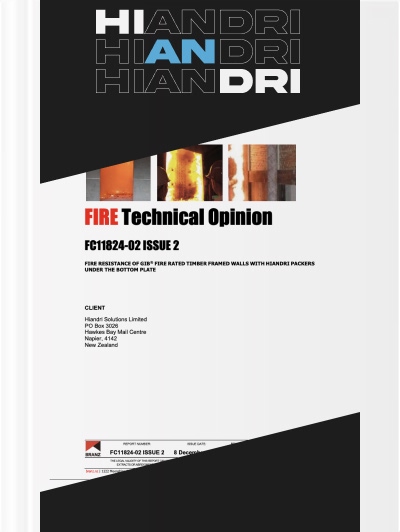

HIANDRI Packers have been tested and assessed for use with some GIB® Fire rated walls. These walls are listed below, as is the associated BRANZ Technical Opinion (FC11824-002 ISSUE 2). For confirmation please visit the BRANZ website.

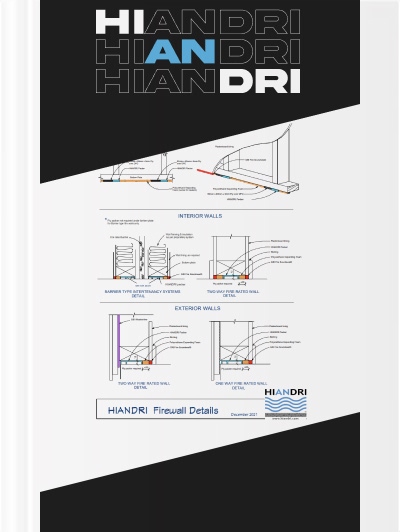

All the Fire rated walls must be constructed as per the GIB® Fire Rated Systems Specification Manual or the GIB® intertenancy Barrier Systems for Terrace Homes (you must then follow the HIANDRI Fire wall details for below the bottom plate level).
Fire Rated and Noise Control Walls
GBUW
15 / 15 / 15
GBTL 30, GBTL 30b, GBTL 30c, GBUW 30a, GBUW 30b, GBTLA 30a, GBTLA 30b, GWTLE 30, GWTLP 30
30 / 30 / 30
GBTL 60GBTL 60b, GBUW 60, GBTLAB 60a*, GBTLAB 60b*, GBTLAB 60c*, GBTLAB 60d*, GBTLA 60, GWTLE 60a, GWTLE 60b, GWTLP 60
* These systems do not require the plywood packer.
60 / 60 / 60
GBTL 90, GBUW 90, GBTLA 90c, GBTLA 90d
90 / 90 / 90
GBT 120a, GBT 120b
- / 120 / 120
GBTL 120, GBUW 120
120 / 120 / 120
Fire Rated and Noise Control Approved Walls
GIB Intertenancy Barrier Systems
For Terrace Homes
GIB Weatherline Rigid Air Barrier System
GIB Timber Frame System
GIB Noise control Intertenancy Double Frame Walls Systems
GIB Fire Rated One Way System
GIB Fire Rated Two Way System
Approved fire rated walls & systems above include
Elephant Fire Rated Systems
For Terrace Homes
Korok Intertenancy 51mm Wall Systems
Korok Intertenancy 78mm Wall Systems
Resene Construction Systems Integra Firewall System
Resene Construction Systems Intertenancy Wall System
Approved fire rated walls & systems above include
frequently asked questions
Do you have a specific question in mind? Have a look at our FAQs as your query may have already been answered by our team there
Technical Assistance

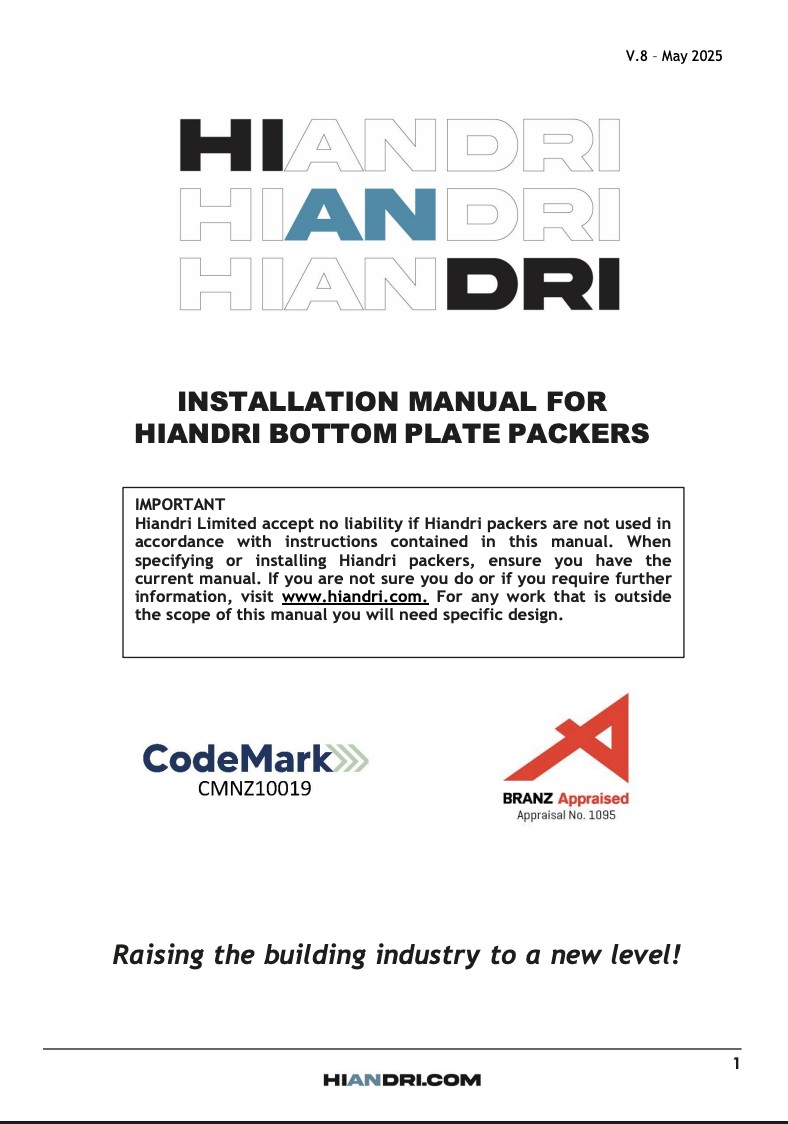

Download our Installation Guide or speak to Sam, our specialist located in New Zealand
Testimonials
other tools & resources
Codemark Certificate
A CodeMark certificate proves compliance with New Zealand’s Building Code, giving builders confidence and streamlining council consent processes.
Hiandri Product Sheet
Download the HIANDRI product sheet to explore how our bottom-plate packers enhance drainage, durability, and code-compliant performance.
Branz Appraisal
Download the BRANZ Appraisal to explore independent assurance of product compliance, performance testing, and trusted confidence in the build process.
Fire Rated & Noise Control Walls
Full details on fire rated and noise control walls HIANDRI has been assessed for use with.

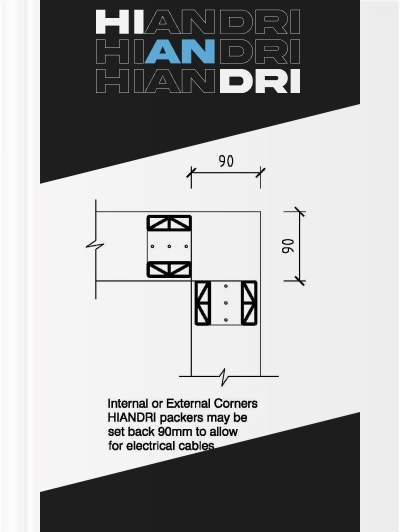

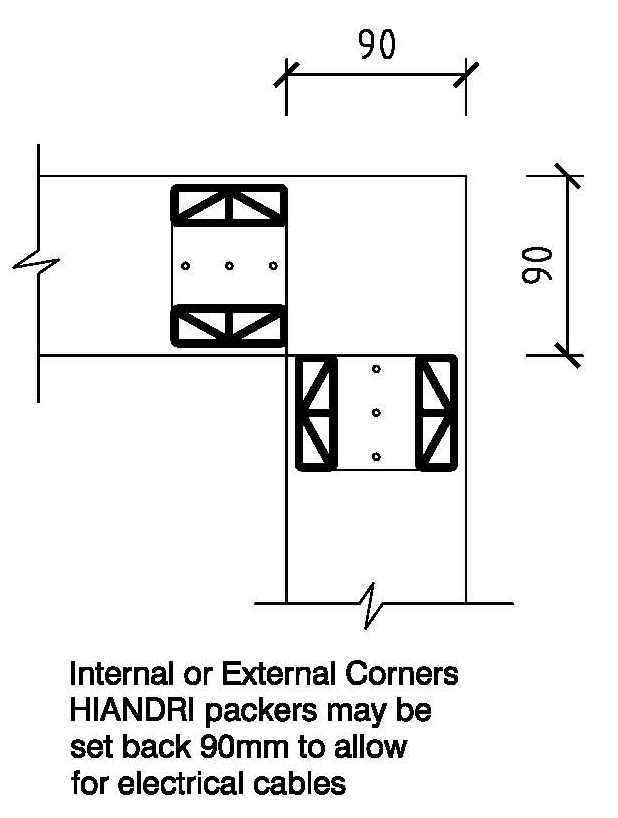

Internal & External Corner Set Brackets
